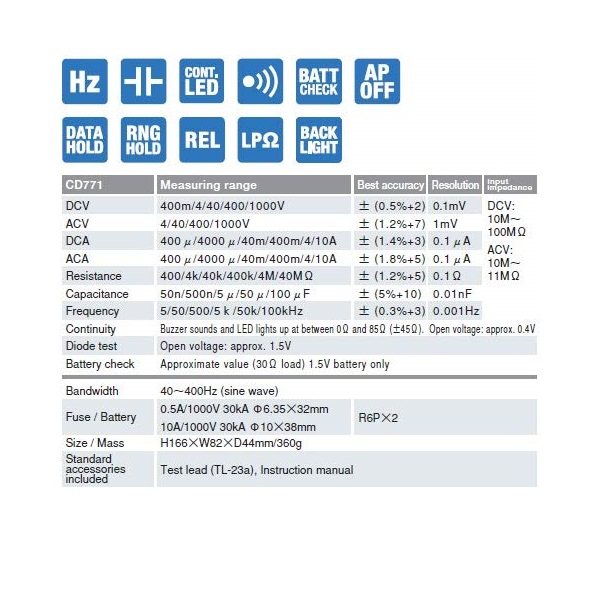

Technical Specifications
Type of Product: Digital Multimeters/Standard type
DCV: 400M - 1000V
Resistance: 40MOhm
Battery: R6Px2
3-3 / 4 digits 4000 count
Easy to read large LCD with Backlight
Large breaking capacity fuse 30kA
1.5V battery check function
Thermo plastic elastomer, high resistance against drop shock
Safety cap on current terminal
Data hold, Range hold, Relative function
Continuity check, Diode test
Auto power off function (30min.)
Maximum 20A can be measured if the measurement time is less than 10 seconds.
Display: numeral display 4000
Sampling rate: 3 times / sec.
AC frequency bandwidth: 40-400Hz
Warranty:
As Per Sanwa Policies
Uses
A digital multimeter is a test tool used to measure two or more electrical values - principally voltage (volts), current (amps) and resistance (ohms). It is a standard diagnostic tool for technicians in the electrical/electronic industries.
