Technical Specifications
Type of Product: Thermo Detector
Laser diode*: Laser class 2, 635 nm
Power supply and runtime: 2 x 1.5V LR6 (AA) batteries 9h
Weight: 0.22kg
Operating temperature, from: -5degC
Operating temperature, up to: 50degC
Operating temperature: -5 - 50degC
Storage temperature, from:-20 degC
Storage temperature, up to 70degC
Storage temperature: -20 - 70 degC
Optics: 12:1
Measurement range: Surface temperature, -30 degC to +500 degC
Measuring accuracy (typical): Surface temperature, -30 degC <= t <= -10 degC: -+ (1.8 degC + 0.1 x |t| degC), -10 degC < t < 0 degC: -+ 2.8 degC, 0 degC -< t < 100 degC: -+1.8 degC, 100 degC -< t -< 500 degC: -+ 1.8%
Warranty:
6 Months
Uses

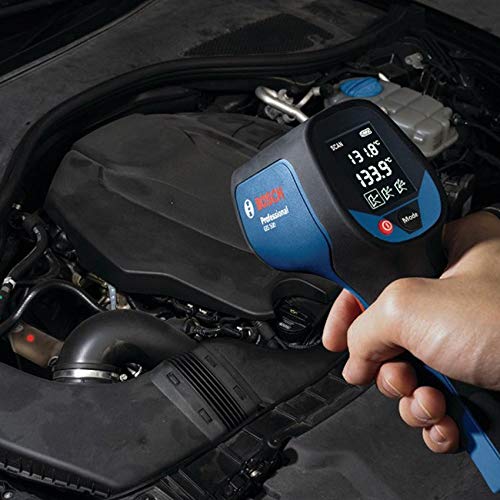

BOSCH GIS500 Temperature Measuring Device provides users a new choice of entry level temperature detector with good price-performance ratio. GIS 500 comes with three emissivity gradings, allowing users to measure surface temperature easily and accurately. The broad temperature range, -30°C to +500°C, is perfect for different applications, which helps to serve user needs and out-perform competition. The mall, ergonomics design and easy handling better fit users as the tool is very compact and simple to use.
