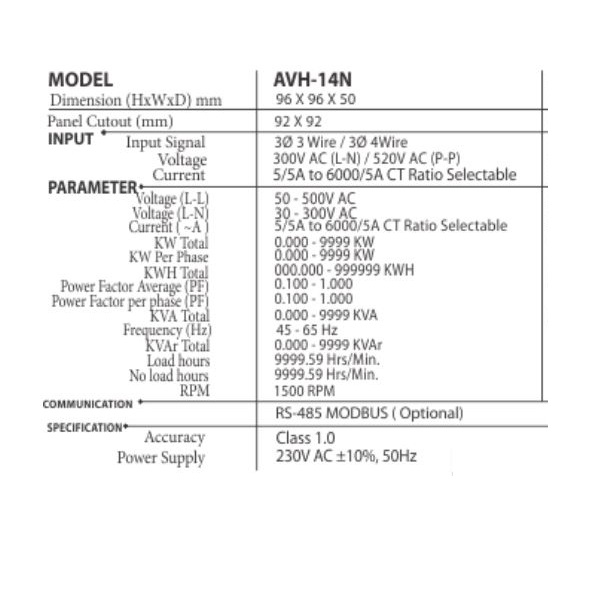

Technical Specifications
- Model: AVH- 14N
- Dimensions: 96x96x50
- Panel Cutout: 92x92
- Input: 3Ø 3 Wire/ 3Ø 4 Wire
- Voltage: 300V AC (L-N)/ 520V AC (P-P)
- Current: 5/5A- 6000/5A CT Ratio Selectable
- KW Total: 0.000- 9999KW
- Frequency: 45- 65 Hz
- Load Hours: 9999.59 Hrs/Min
- RPM: 1500 RPM
- Supply: 230 AC, 50 Hz
Warranty:
1 Year
