Technical Specifications
- Model: CT- 56G
- Dimensions: 38x62x75
- Panel Cutout: 31x54

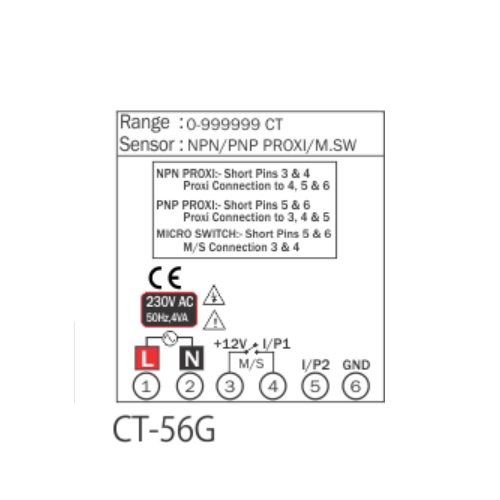

- Sensor: NPN/PNP Proximity Switch/ Micro Switch(Configurable), 230 AC Pulse/ Encoder (Any one Factory Set)
- Range: 0 - 999999 Count
- Memory: Non- Volatile
- Reset: Manual Reset, Back Reset (Optional)
- Supply: 230 AC 50 Hz
Warranty:
1 Year- Brand Warranty
Uses
It is an ideal tool for cost accountants to evalute production v/s actual running time, fuel consumption and labor cost of the machine. It indicates when preventive maintenance or replacement of components is use.
The Totalizer can not be reset to zero externally there by ruling out the possibility of tampering with the recorded time.
