Technical Specifications

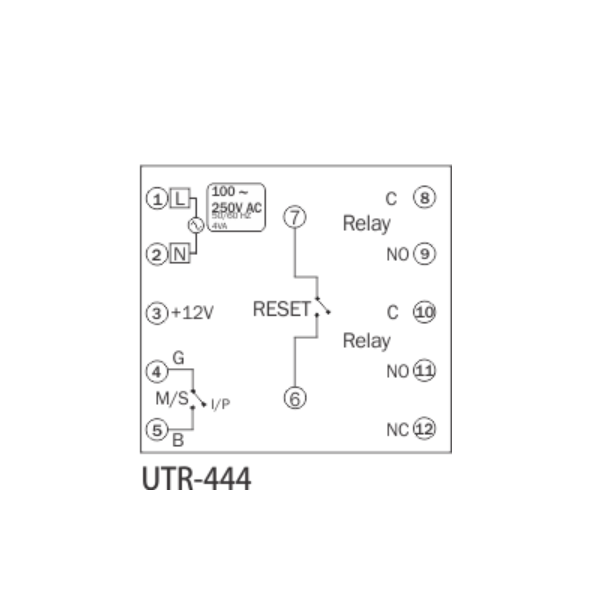

- Model: UTR 444
- Dimensions: 48x48x95
- Panel Cutout: 44x44
- Sensor: Micro/Limit/ Proximity (Connfigurable)
- Range: 99.99/999.9/999 Sec/Min/Hrs (Configurable)
- Output: 1 Relay, 2C/O, 5A, 230 AC, 12V DC SSR Output (Any One Factory Set)
Operation Mode: Delayed ON/OFF/Cycle Mode (Configurable)
Count Direction: Up/Down (Configurable)
Memory: Yes/ No (Configurable)
Reset: Front and back
Supply: 100-250AC, 50/60Hz
Warranty:
1 Year- Brand Warranty
Uses
The Programmable Timer is used for measurement, display and control in applications that have variables. A Programmable Timer can also work with a single input or, in some cases, a pair of signals. Timers exist because many processes are based upon timed events.
