Technical Specifications

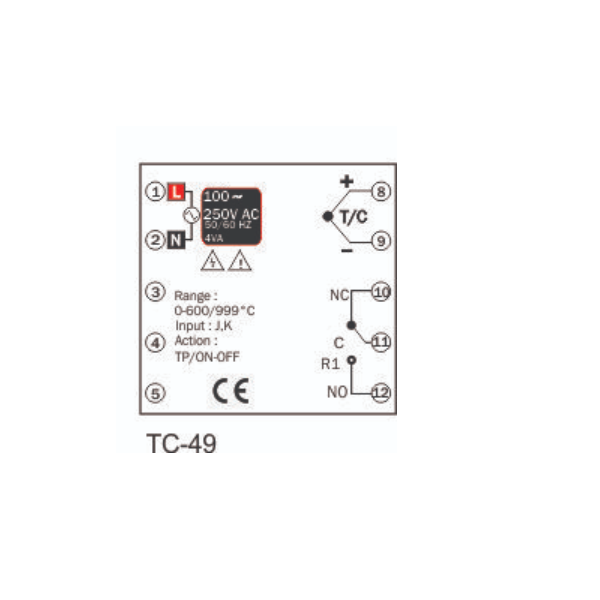

Model: TC- 49
Dimensions: 48x48x70
Panel Cutout: 44x92
Sensor: J/K/PT-100 2W/3W (Configurable)
Range: J (0-400/600 C), K(0-999 C), PT 100 2W/3W (0 to 400, -50 to 200 C)
Output: 1 Relay 1C/O, 5A, 230V AV & SSR 12VDC Parallel
Cotrol Action: Time Proportional ON- OFF (factory Set)
Accuracy: 1% of FSD
Supply: 100-250 AC, 50/60 Hz
Warranty:
1 Year- Brand Warranty
Uses
A controller in a temperature control system will accept a temperature sensor such as a thermocouple or RTD as input and compare the actual temperature to the desired control temperature, or setpoint. It will then provide an output to a control element.
