Technical Specifications

- DC Voltage: 200mV/2V/20V/200V/1000V, ±(0.1% ±5)
- AC Voltage: 2V/20V/200V/750V, ±(0.8% ±15)
- DC Current: 2mA/200mA, ±(0.5% ±10)
- AC Current: 2mA/200mA ±(1.2% ±20)
- Resistance: 200/2K/20K/2M/20M ±(0.5% ±5)
- Capacitance: 20nF/200nF/2µF/200µF ±(4% ±20)
- Safety Rating: CATII 1000V or CAT III 600V RoHS
- Display: 20000
- Auto Power Off
- Sound and Light Warning: For incorrectly inserting the input plugs
- Transistor hFE: 0~1000
- Diode: 2.8V
- Continuity Buzzer: ≤50Ω

Warranty: As per Mastech's policy

Uses

Measures AC/DC Voltage and Current, Resistance, Capacitance, Frequency and duty cycle

★ ★ ★ ★ ☆

4.4 (7 Reviews)

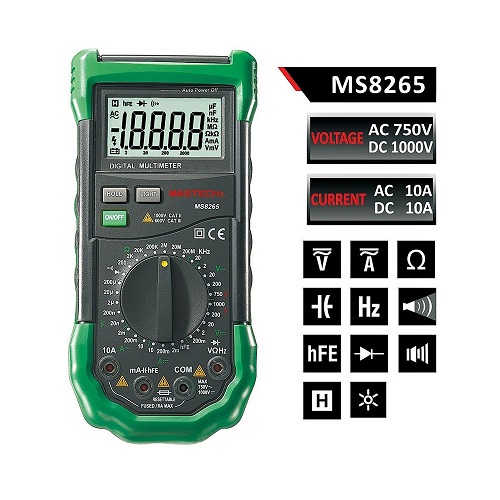

Mastech MS8265 Digital Multimeter

- Large 20000 Counts LCD Display
- Sound and Light warning for incorrectly inserting the input plugs
- Transistor (hFE) Check, Diode and Continuity Test
- Data Hold and Display Back Light
- Safety Rating up to CAT.II 1000V / CAT.III 600V

Rs. 4,897.00   Save Rs. 972 (20% Off)

Rs. 3,925.00 /each (Incl GST-18%)

PDF Icon Technical Documents PDF Icon

Stock Icon 197 in Stock

Technical Specifications

- DC Voltage: 200mV/2V/20V/200V/1000V, ±(0.1% ±5)
- AC Voltage: 2V/20V/200V/750V, ±(0.8% ±15)
- DC Current: 2mA/200mA, ±(0.5% ±10)
- AC Current: 2mA/200mA ±(1.2% ±20)
- Resistance: 200/2K/20K/2M/20M ±(0.5% ±5)
- Capacitance: 20nF/200nF/2µF/200µF ±(4% ±20)
- Safety Rating: CATII 1000V or CAT III 600V RoHS
- Display: 20000
- Auto Power Off
- Sound and Light Warning: For incorrectly inserting the input plugs
- Transistor hFE: 0~1000
- Diode: 2.8V
- Continuity Buzzer: ≤50Ω

Warranty: As per Mastech's policy

Uses

Measures AC/DC Voltage and Current, Resistance, Capacitance, Frequency and duty cycle
