Technical Specifications
Resistance:
- 0.5V RMS:
60Ω 0.01Ω ±(2.0%+10)
600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ ±(1.0%+5)
6MΩ/20MΩ 0.001MΩ/0.01MΩ ±(2.0%+5)
- 0.1V RMS
60Ω 0.01Ω ±(2.0%+10)
600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ ±(1.5%+5)
6MΩ/20MΩ 0.001MΩ/0.01MΩ ±(3.0%+5)
Capacitance:
- 0.5V RMS
600pF 0.1pF ±(2.0%+8)
6nF/60nF/600nF 0.001nF/0.01nF/0.1nF ±(1.0%+5)
6μF/60μF 0.001μF/0.01μF ±(2.0%+5)
600μF 0.1μF ±(2.0%+10)
6mF 0.001mF ±(2.0%+5)
- 0.1V RMS
600pF 0.1pF ±(2.0%+5)
6nF/60nF/600nF/6μF
0.001nF/0.01nF/0.1nF/0.001μF ±(1.5%+5)
60μF/600μF/6mF 0.01μF/0.1μF/0.001mF ±(3.0%+5)
Inductance:
- 0.5V RMS
600μH/6000μH 0.1μH/1μH ±(2.0%+5)
60mH/600mH/6H/60H
0.01mH/0.1mH/0.001H/0.01H ±(1.0%+5)
200H 0.1H ±(2.0%+5)
- 0.1V RMS
600μH/6000μH 0.1μH/1μH ±(3.0%+5)
60mH/600mH/6H 0.01mH/0.1mH/0.001H ±(1.5%+5)
60H 0.01H ±(1.0%+5)
200H 0.1H ±(2.0%)
Power Supply : 1x3V CR2450 Battery
Product Size : 186mmx35mmx23.6mm 7.3x1.38x0.93
Product Weight : 90g/0.2lb
Certification : CE /ETL /RoHS
Warranty:
1 Year
Uses

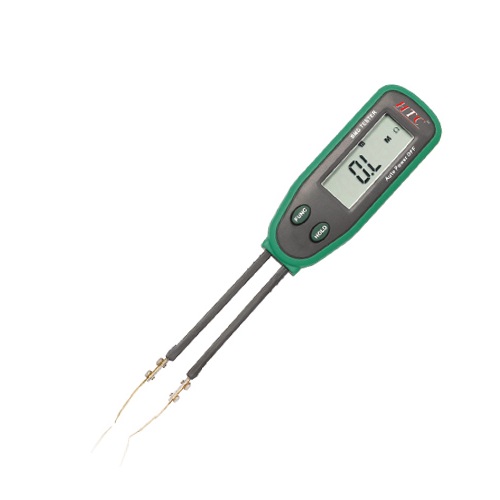

The Tester is a handheld and battery operated very convenient small Tool that is specially used to measuring SMD (Surface Mounting Device), there arechip type resistor, chip type capacitor and diode, for example. Moreover, the tester have the continuity checking function
