Technical Specifications

Test Voltage: 500V/1000V/2500V 0%~10%
- 500V 0.00MΩ~99.9MΩ ±(3%+5)
- 100MΩ~5.0GΩ ±(5%+5)
- 1000V 0.00MΩ~99.9MΩ ±(3%+5)
- 100MΩ~5.0GΩ ±(5%+5)
- 2500V 0.00MΩ~99.9MΩ ±(3%+5)
- 100MΩ~9.9GΩ ±(5%+5)
- 10.0GΩ~20.0GΩ ±(10%+5)
Load Current
- 50V (R=50kΩ) 1mA 0%~10%
- 100V (R=100kΩ) 1mA 0%~10%
- 250V (R=250kΩ) 1mA 0%~10%
- 500V (R=500kΩ) 1mA 0%~10%
- 1000V (R=1MΩ) 1mA 0%~10%
- 2500V (R=1MΩ) 1mA 0%~10%
- Short Circuit Current: 　 <2mA
- Low Resistance (Ω) 0.01Ω~200Ω (about 5.0V/>200mA） ±(2%+3)
- AC Voltage (V) 30V~600V ±(2%+3)
- Display Count 　 2000
- Autorange

Warranty: 1 Year

Uses

These are ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, and other electrical equipment that can operate in a safe and accurate manner.

UNI-T UT502A Insulation Tester

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. Itt can measure insulation resistance, AC voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption Ratio)

  • Test Voltage: 500V/1000V/2500V
  • 2000 count LCD display, overload indication, backlight
  • AC voltage measurement, auto power off
  • Auto discharge
  • Continuous measurements mode, red warning light and buzzer function
  • Continuous low resistance measurement
  • PI and DAR measurement, auto resistivity calculation
  • Low resistance returning to zero function to improve accuracy
  • EN61557-1:2007, EN61557-2:2007, EN61557-4:2007

Rs. 11,500.00   Save Rs. 2900 (26% Off)

Rs. 8,600.00 /each (Incl GST-18%)

PDF Icon Technical Documents PDF Icon

Stock Icon 10 in Stock

Brand Brand
Authorization
In-house Service center
Total Brand Orders 695

Technical Specifications

Test Voltage: 500V/1000V/2500V 0%~10%
- 500V 0.00MΩ~99.9MΩ ±(3%+5)
- 100MΩ~5.0GΩ ±(5%+5)
- 1000V 0.00MΩ~99.9MΩ ±(3%+5)
- 100MΩ~5.0GΩ ±(5%+5)
- 2500V 0.00MΩ~99.9MΩ ±(3%+5)
- 100MΩ~9.9GΩ ±(5%+5)
- 10.0GΩ~20.0GΩ ±(10%+5)
Load Current
- 50V (R=50kΩ) 1mA 0%~10%
- 100V (R=100kΩ) 1mA 0%~10%
- 250V (R=250kΩ) 1mA 0%~10%
- 500V (R=500kΩ) 1mA 0%~10%
- 1000V (R=1MΩ) 1mA 0%~10%
- 2500V (R=1MΩ) 1mA 0%~10%
- Short Circuit Current: 　 <2mA
- Low Resistance (Ω) 0.01Ω~200Ω (about 5.0V/>200mA） ±(2%+3)
- AC Voltage (V) 30V~600V ±(2%+3)
- Display Count 　 2000
- Autorange

Warranty: 1 Year

Uses

These are ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, and other electrical equipment that can operate in a safe and accurate manner.


Related Products

MCM
Digital Motor Checker EMC-38A

Rs. 23,750.00

5% Off

Rs. 25,000.00

Min Qtn: 01

MCM
Analog Motor Checker EMC-25

Rs. 17,300.00

16% Off

Rs. 20,500.00

Min Qtn: 01

CIE

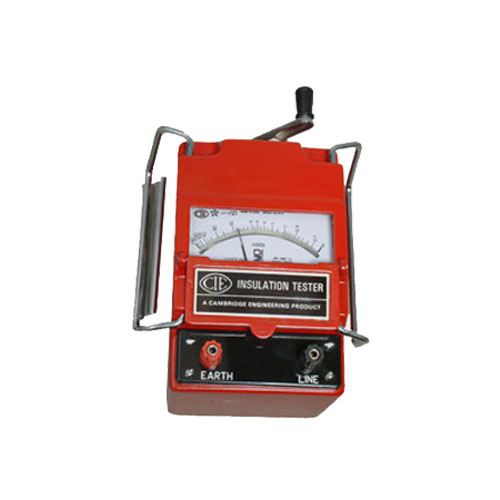

CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 16,000.00

0% Off

Rs. 16,000.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 13,500.00

0% Off

Rs. 13,500.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 12,500.00

0% Off

Rs. 12,500.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 12,000.00

0% Off

Rs. 12,000.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 13,200.00

0% Off

Rs. 13,200.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 10,800.00

0% Off

Rs. 10,800.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 10,000.00

0% Off

Rs. 10,000.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 9,400.00

0% Off

Rs. 9,400.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 9,300.00

0% Off

Rs. 9,300.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 9,300.00

0% Off

Rs. 9,300.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 9,300.00

0% Off

Rs. 9,300.00

Min Qtn: 01

CIE
444 Analog Insulation Tester - 1000V, 0-2000 MOhm

Rs. 7,700.00

15% Off

Rs. 9,000.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 8,600.00

0% Off

Rs. 8,600.00

Min Qtn: 01

CIE
444 Analog Insulation Tester - 1000V, 0-200 MOhm

Rs. 7,000.00

13% Off

Rs. 8,000.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,800.00

0% Off

Rs. 7,800.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 8,900.00

0% Off

Rs. 8,900.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 8,500.00

0% Off

Rs. 8,500.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,700.00

0% Off

Rs. 7,700.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,400.00

0% Off

Rs. 7,400.00

Min Qtn: 01

CIE
444 Analog Insulation Tester - 500V, 0-100M MOhm

Rs. 6,350.00

12% Off

Rs. 7,200.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,700.00

0% Off

Rs. 7,700.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,400.00

0% Off

Rs. 7,400.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,200.00

0% Off

Rs. 7,200.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,700.00

0% Off

Rs. 7,700.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,400.00

0% Off

Rs. 7,400.00

Min Qtn: 01

CIE
CIE / 444 Insulation Tester (Hand Driven Generator Type)

Rs. 7,200.00

0% Off

Rs. 7,200.00

Min Qtn: 01

Sanwa

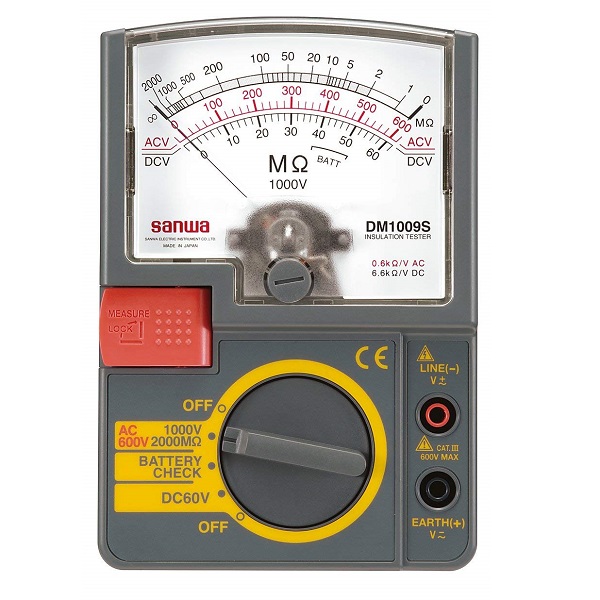

DM1009S Insulation Tester- 1000V

Rs. 12,250.00

12% Off

Rs. 13,806.00

Min Qtn: 01

MECO G
R-DT945K Digital Insulation Tester- 5KV

Rs. 10,500.00

17% Off

Rs. 12,600.00

Min Qtn: 01

MECO G

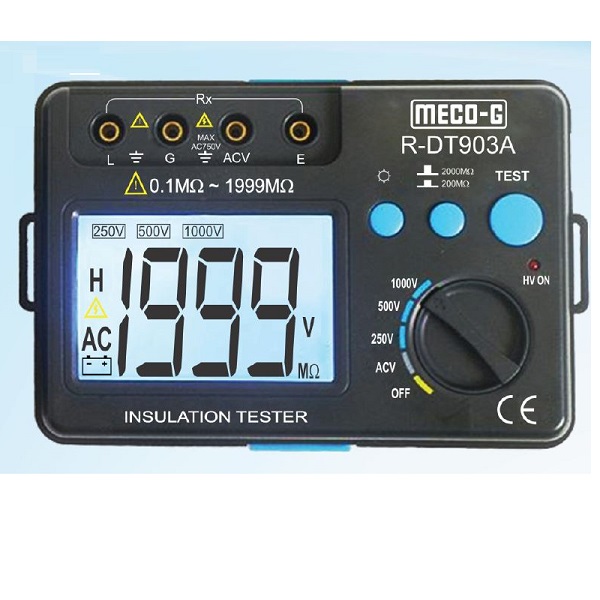

R-DT903A Digital Insulation Tester
