UNI-T
UT522 Earth Resistance Tester
UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment.
Earth Resistance (Ω)
- 0～40Ω, ±(2%+20)
- 0～400Ω, ±(2%+3)
- 0～4000Ω, ±(2%+3)
Features
- Over range indication, test lead connection alarm
- EST button for fast capture of measurement values
- 20-group data storage/recall
- Backlight
- Data hold
- Auto power off/battery check
- Earth voltage measurement

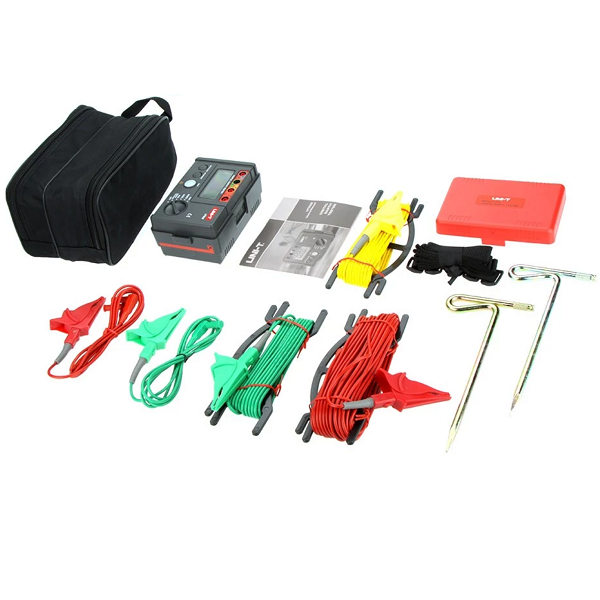

Includes High Quality- Original UNI-T Earth Testing Kit
Rs.
16,500.00 Save Rs. 2250
(14% Off)
Rs.
14,250.00
/each (Incl
GST-18%)
6 in Stock
Technical Specifications
- Earth Resistance (Ω)
- 0～40Ω, ±(2%+20)
- 0～400Ω, ±(2%+3)
- 0～4000Ω, ±(2%+3)
- AC Earth Voltage (V): 0～400V, ±(1%+6)
- Frequency: 50Hz/60Hz
- Display Count: 4000
- Manual Range
- Auto Power Off: About 10 minutes
- Low Battery Indication
- Data Hold
- Data Storage: 20 groups
- LCD Backlight
- Full Icon Display
- Double Insulation Protection
- Contact Badness Indication
- Over-Range Display
- Simple 2-Wire Testing
- Precision 3-Wire Testing
- Power: 1.5V batteries (5#) X 6
- LCD Size: 70.6mm X 34mm
- Weight: 560g
- Product Size: 160mm X 100mm X 70.5mm
- Standard Accessories: Batteries, carrying bag, test lead, simple test lead, test probe
Warranty:
1 Year
Uses
UT520 series can perform precise 3-wire and simple 2-wire earth resistance measurement for power and electrical systems, lightning protection equipment, and ground system of all electrical equipment. This series is UNI-T’s introductory earth resistance tester with high economic value. Its lightweight design is convenient for fieldwork.
