UNI-T

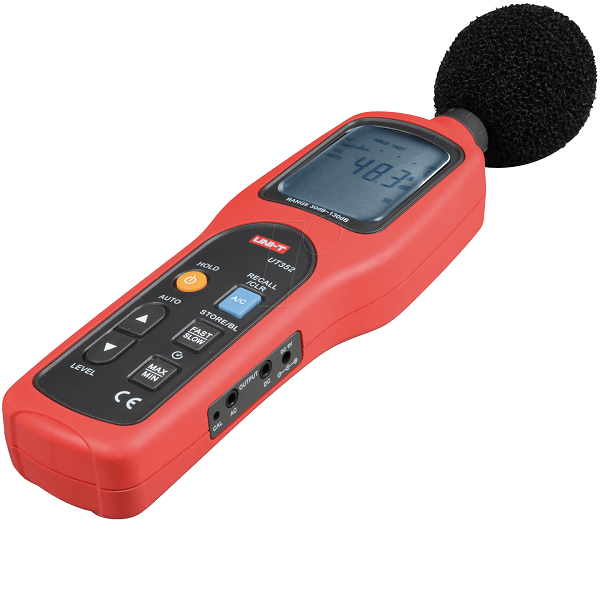

UT352 Sound level meter With Data Logging
This new digital sound level meter with a high accuracy of +/- 1.5dB and a large, backlit and well-organised digital LCD display with bar graph is perfectly suited for use in all relevant areas.
In addition the device has a data logger that makes it possible to store up to 64 measurement records.
Analog signal output: 3 1/2 Digit LCD display with analog bar fast response indication for more intuitive reading of noise parameter values; AC: 0.707Vrms / full scale output impedance of each gear is about 600Ω, DC: 2Vrms / per gear Full scale 10mV/dB, output impedance 100Ω.
Accurate measurement: The sound level meter uses a 1/2" condenser microphone with a high-quality wind-proof ball that allows you to make noise measurements at higher ambient sound levels.
Two range selection: The sound level meter can select auto range or manual range to measure; the frequency range is 31.5Hz-800Hz, the additional frequency characteristic is A&C, the sampling rate is 8 times/s, and the slow is 1 time/s.
Portable charging: The sound level meter can not only use its battery to supply power, but also use its external power supply when you need to go out; and the sound level meter has an overload warning to save your data in a sudden situation.
Rs.
12,500.00 Save Rs. 3000
(24% Off)
Rs.
9,500.00
/each (Incl
GST-18%)
2 in Stock
Technical Specifications
- Measurement range: 30 - 130 dB
- Accuracy: ± 1.5 dB
- Frequency range: 31.5 Hz / 8 kHz
- Level ranges:
30 - 80 dB
50 - 100 dB
60 - 110 dB
80 - 130 dB
auto: 30 - 130 dB
- Display: 53 x 41 mm with background lighting
- Data logger: 63 records
- Sleep mode
- Data-Hold function
- Min/max mode
- Response time: fast: 125 ms, low: 1 s
- Analogue output: AC/DC outputs
- Operating voltage: 4x AA Mignon 1.5V
- Dimensions (WXHXD): 70 x 273 x 39 mm
- Weight: 330 g
Warranty:
As per UNI-T warranty policy
Uses
Use the measuring device for noise projects, quality control, ambient noise measurement, in factories, offices, schools, in transport, household and medical
