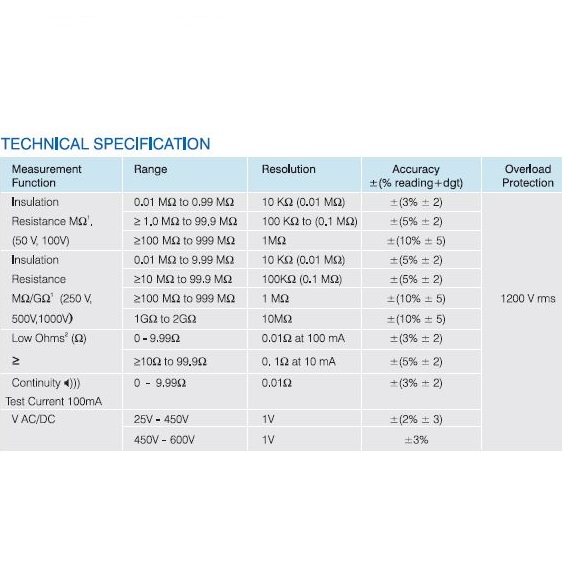

Technical Specifications

- CE mark conforming to latest EN 61010-1:2010
- EN 61326-1:2005, CAT IV 600V, IP54 protection
- Overload protection 1200V for all ranges
- Guard Terminal to minimize surface leakage
- Selectable voltage facility 50,100,250,500 &1000V.
- Insulation resistance range up to 2 GOhm Auto AC/DC 600V measurement.
- Live circuit detection up to 600V AC/DC.
- Low resistance measurement up to 100 Ohm with continuity testing.
- Temporary storage of 10 readings.
- NO-GO test facility.
- Pre selectable Timer facility, Mains Eliminator.
- Auto power off facility.

Warranty: As per Motwane's Warranty Policy

Uses

Portable insulation resistance testers and megohmmeters are designed to help prevent hazards such as electric shock and short-circuits caused when the insulation in electrical devices, parts, and equipment used in industrial plants, buildings, and other settings degrades over long periods of use.

MOTWANE i-12 Digital Insulation tester

MOTWANE's Insulation Tester Model i-12 is a compact, light weight, hand held and battery operated digital insulation tester. It is a 1kV insulation tester with maximum range of 2 GOhm for Insulation Resistance Measurement.

Rs. 16,190.00   Save Rs. 4440 (28% Off)

Rs. 11,750.00 /each (Incl GST-18%)

PDF Icon Technical Documents PDF Icon
