Technical Specifications
- Measuring functions: 3-pole earth ground resistance, 2-pole ac resistance of a conductor
- Measuring rate: 2 measurements/second
- Battery[1] : One 9 volt alkaline (LR61)
- Voltages: Between jacks H/C2 and E/C1: 250 Veff maximum (effective voltage)
- Between jacks S/P2 and E/C1: 250 Veff maximum
- Climatic class: VDE/VDI 3540 RZ (conforming to KWG as per DIN 40040, 4/87)
- Reference: +23 °C ± 2 °C (+73 °F ± 4 °F)
- Safety IEC/EN 61010-1, 600 V CAT II, pollution degree 2
- Dimensions 113 mm x 54 mm x 216 mm (4.5 in x 2.1 in x 8.5 in), including holster
- Weight 850 g (1.9 lb), including standard accessories, volume approximately 600 cm3
Email us at Support@toolworld.in for complete technical datasheet
Warranty:
As per Flukes warranty policy.
Uses

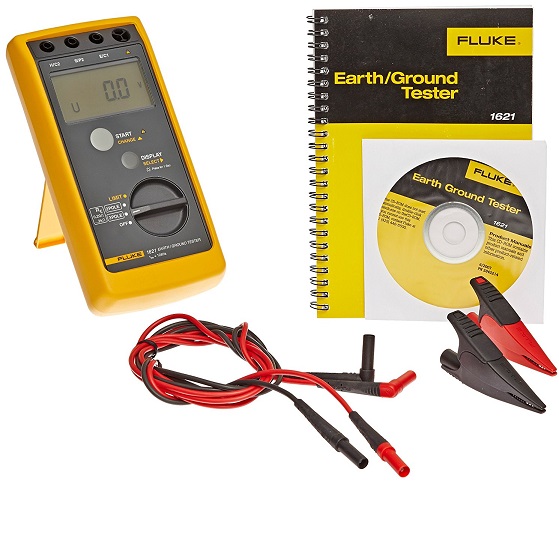

Its convenient size, rugged holster, and large, clear LCD display make it an ideal field earth ground tester, for most electrical grounding work environments. With a simple user interface and intuitive functionality, the Fluke 1621 is a handy grounding tool for electrical contractors, utility test engineers, and earth ground specialists.
