Technical Specifications
- Display LCD Display, Counts 4000
- AC Voltage Range 400mV to 1000V
- AC Voltage Accuracy 1.0% + 3
- DC Voltage Range 400mV-1000V
- DC Voltage Accuracy 0.5% + 3
- AC Current Range 400A - 10 A
- AC Current Accuracy 1.5% + 3 Digit
- DC Current Accuracy 1.5% + 3 Digit
- DC Current Range (Amp) 400A - 10 A
- Resistance Range (Ohm) 0-40 M
- Resistance Accuracy +1.5%+3 Digit
- Capacitance Range (F) 40nF - 1000 F
- Capacitance Accuracy 5% + 5 digit
- Frequency Range (Hz) 50Hz - 100 kHz
- Frequency Accuracy 0.1 % + 3
- Operating Temperature 0 to 40C
- Storage Temperature -30 to 60C
- Altitude 2000 m (Operating), 12,000 m (Storage)
- Power Input NEDA 24A, IEC LR03 AAA x 2 Batteries
- Standard Accessories Cases and Holsters , Test Leads
- Dimensions 183x91x49.5 mm
- Weight (g) 455 g
Warranty:
As per Flukes warranty policy- 1 Year
Uses

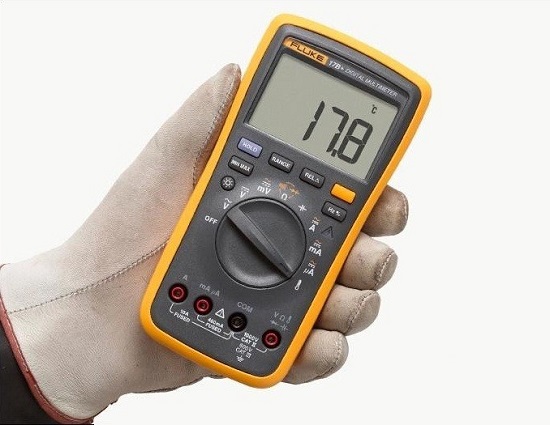

Your job requires that you have a rugged, reliable and accurate digital multimeter. The Fluke 17B+ digital multimeter does all that and more. Common basic electrical measurements plus temperature, frequency and duty cycle. Easy to use with one hand, even with gloves on, the Fluke 17B+ offers everything you need.
