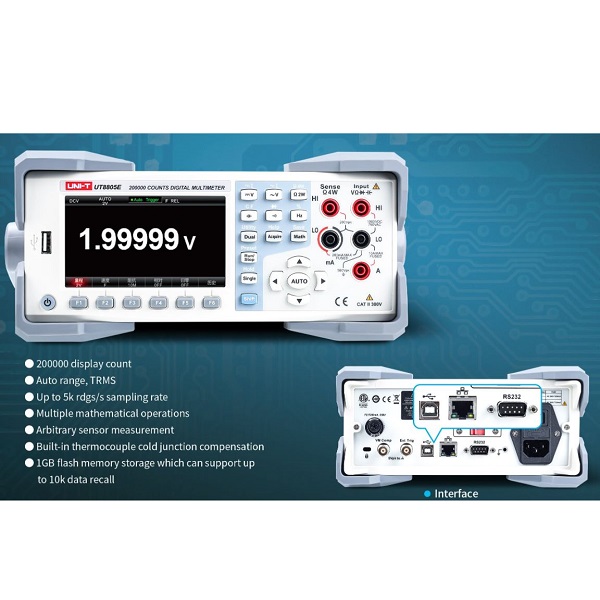

Technical Specifications
DC voltage measurement: 200mV, 2V, 20V, 200V, 1000V
DC current measurement: 200μA, 2mA, 20mA, 200mA, 2A, 10A
AC voltage measurement: RMS 200mV, 2V, 20V, 200V, 750V
AC current measurement: RMS 2mA, 20mA, 200mA, 2A, 10A
Resistance measurement: (2-wire, 4-wire) 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 100MΩ
Capacitance measurement: 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, 2mF
Continuity test: fixed 2kΩ
Diode test: 0V-4V
Frequency measurement: 20Hz-1MHz
Cycle measurement: 1μs-0.05s
Temperature measurement: thermocouple and thermal resistance sensor supported
| special function |
| Display count |
199999 |
| Auto range |
√ |
| True RMS |
√ |
| Sampling speed |
5k rdgs/s |
| Data storage |
10k data record; 1GB Nand Flash total storage |
| Frequency response (Hz) |
100kHz |
| Diode/triode |
√ |
| Continuity buzzer |
√ |
| Data hold |
√ |
| Mathematical operations |
Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart and bar chart |
| Voltage & current |
AC+DC |
| Input resistance |
≥10GB or 10MΩ |
| Interface |
USB Host, USB Device, LAN, RS-232 |
Warranty:
1 Year
Uses
Research and education, Research and development, Detection and maintenance, Calibration, Automated testing
