Technical Specifications

Temperature Range 200～500℃

Temp .Stability ±2℃

Tin Adjustable YES

Input Voltage AC220V

Max Power 120W

Foot Pedal

Tip to Ground Resistance Less than 2Ω

Tip to Ground Potential Less than 2mV

Feeding Speed Appr.14mm/s～ 35mm/s

Feeding Volume (Auto Mode) 0.5 ～ 123mm

Feeding Interval Time 0 -3.5s

Dimensions of of wire suitable 0.8,1.0,1.2,1.6

Warranty: 1 Year

Uses

Industrial use feeder soldering station. Saves production time, costs, and causes low user fatigue in production environment

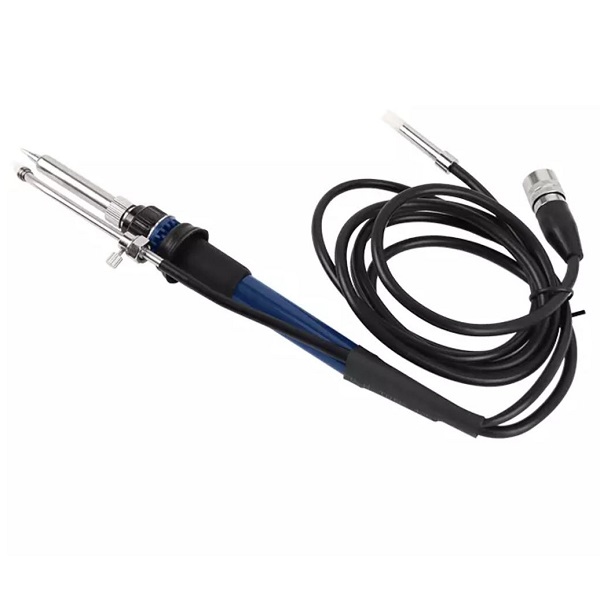

Bakon BK3500 Automatic Feeder Soldering Station- 120W



  • Wattage: 120W, High Frequency
  • High frequency eddy current heating ; Rapid heating and quick thermal recovery suitable for lead free soldering. Many types of tips are available with easy replacing.
  • Micro computer control; set temperature only by pressing keys; temperature calibrates digitally; more functions available, such as auto sleeping, auto shut-off.
  • Auto and manual ways of solder feeding optional. Imported motor,automatic feeding. More functions available and adjustable, such as feeding speed, feeding volumes, interval time etc.
  • Two types of feeding hose optional, easy to use. Long hose suitable for fixed soldering. It can be used as lead free soldering station only.
  • Pedal switch or manual switch is available. Soldering direction may be changed as needed and soldering can be agile and convenient.

Rs. 28,500.00   Save Rs. 5500 (20% Off)

Rs. 23,000.00 /each (Incl GST-18%)

PDF Icon Technical Documents PDF Icon

Stock Icon 1 in Stock

Technical Specifications

Temperature Range 200～500℃

Temp .Stability ±2℃

Tin Adjustable YES

Input Voltage AC220V

Max Power 120W

Foot Pedal

Tip to Ground Resistance Less than 2Ω

Tip to Ground Potential Less than 2mV

Feeding Speed Appr.14mm/s～ 35mm/s

Feeding Volume (Auto Mode) 0.5 ～ 123mm

Feeding Interval Time 0 -3.5s

Dimensions of of wire suitable 0.8,1.0,1.2,1.6

Warranty: 1 Year

Uses

Industrial use feeder soldering station. Saves production time, costs, and causes low user fatigue in production environment
