Technical Specifications



  • DC Voltage    0.1 mV - 1000 V    ±(0.5% + 2)
  • AC Voltage    0.1 mV - 750 V    ±(0.6% + 5)
  • DC Current    0.1 μA - 10A    ±(0.8% + 3)
  • AC Current    0.1 μA - 10A    ±(1.0% + 5)
  • Resistance    0.1 Ω - 60 MΩ    ±(0.8% + 5)
  • Temperature    -40 °C - 1000 °C    ±(2% + 5)
  • Capacity    0.001 nF - 6 mF    ±(2.5% + 5)
  • Inductance    0.1μH - 100 H    ±(2.5% + 5)
  • Frequency    0.1 Hz - 20 MHz    ±(0.1% + 10)
  • True-RMS     Yes
  • Extra functions    duty cycle, continuity test, diode test, hFE, thyristor measurement
  • Power    AC 100-240V 50Hz
  • Display    6000 counts, 4.5" LCD
  • Refresh rate    3 Hz
  • Connectivity    USB interface
  • Safety    CAT.II 600V
  • Weight    3100 g
  • Dimensions    320 x 265 x 110 mm

Warranty: 1 Year

Uses

Industrial use Benchtop Multimeter

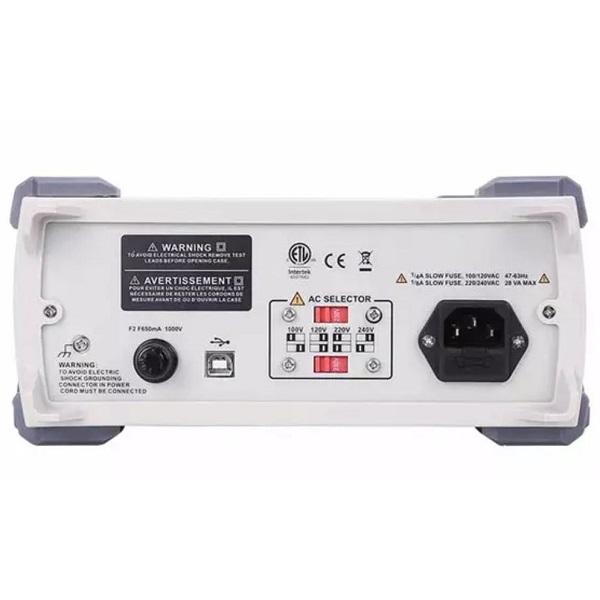

UNI-T UT8803E Benchtop Multimeter- True Rms

The UT8803E from UNI-T is a fully-featured true-RMS 6000 counts benchtop multimeter that in addition to temperature and frequency is also capable of measuring capacitance and inductance including the Q-factor. This multimeter comes with free PC software with which you can record data and plot it into a graph.

Features:

  • Automatic scale, True rms reading
  • Diode / transistor
  • Measuring thyristor SCR
  • Inductance measurement
  • USB interface
  • Data retention, Max / Min
  • Continuity buzzer

The UNI-T UT8803E multimeter comes with the following accessories::

  • UT-S03A socket
  • Test Lead
  • Alligator clip
  • USB interface cable
  • Power Cable

Rs. 17,500.00   Save Rs. 2000 (12% Off)

Rs. 15,500.00 /each (Incl GST-18%)
