Technical Specifications



 Function UTL8212
Number of channels 2
    Voltage 0~150V
Rated value  Current 0~2A, 0~20A
   Power 2x200W
 CC mode  Current 0~2A, 0~20A
 Resolution: 1mA, 10mA; Accuracy: ±( 0.05% + 0.05%FS)
 CV mode  Range: 0~18V, 0~150V; Resolution: 1mV, 10mV; Accuracy: ±(0.05%+0.1%FS)
 CR mode  Range: 0.05Ω~7.5KΩ; Resolution: 16bit; Accuracy: 0.1% + 0.5%FS
 CP mode  Range: 400W, 200W; Resolution: 10mW; Accuracy: 0.1% + 0.5%FS
 Dynamic mode  T1&T2: 100uS-3600S; Accuracy: 5 μS±100 ppm; Slope: 0.001~0.15 A/μS
 Voltage readback  Range: 0~18V, 0~150V; Resolution: 1mV, 10mV; Accuracy: ±( 0.05%+   0.1%FS)
 Current readback  Range  0~2A, 0~20A
 Resolution: 1mA, 10mA; Accuracy: ±( 0.05%+ 0.1%FS)
 Power readback  200W; Resolution: 10mW; Accuracy: ±(0.1% + 0.5%FS)

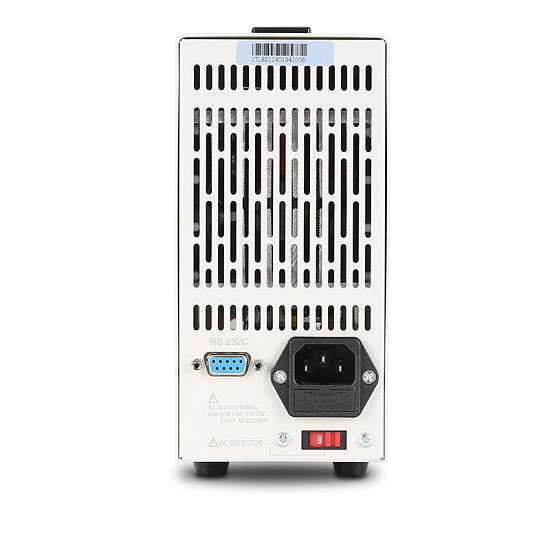

 Communication   Interface  RS-232C
 Protocol  SCPI



Warranty: 1 Year

Uses

Power supply test, adapter/charger test, battery test, lithium battery protection board test, ATE, component test, etc., commonly used in home appliance manufacturers, LCD and other computer component manufacturers, switching power supply and LED manufacturers, adapter charger manufacturers and other companies Production and testing use.

UNI-T UTL8212 High-Precision Compact DC Electronic Load

The UTL8200 Series is designed for users requiring a DC load with a compact form factor which is widely used in basic applications such as product production line and maintenance. Small size, easy operation, rich testing functions and modes, support for dual-channel independent testing,  the standard RS-232 interfaces for remote communication to meet your diversified test requirements, easy to connect seamlessly with automatic production line and  automatic test system (ATS). With a wide range of power measurement,  voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA, the UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class.

  • UTL8212: Dual channel 150V/2X20A, 2X 200W
  • CC/CV/CR/CP four basic modes
  • 1mV/1mA high resolution
  • Dynamic current test
  • Voltage and current measurement speed up to 40kHz
  • Multi-mode battery discharge test
  • List mode, support automatic test
  • Independent short circuit test function
  • Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection etc.
  • Supporting PC software to realize remote operation and monitoring
  • Power-off memory function
  • Intelligent temperature control fan
  • Standard RS-232C interface, support SCPI protocol

Rs. 28,500.00   Save Rs. 4250 (15% Off)

Rs. 24,250.00 /each (Incl GST-18%)
