Technical Specifications

Bandwidth	200MHz
Sample Rate	1GS/s (500MS/s for each channel)
Vertical Resolution (A/D))	8 bits
Record length	40M
Waveform Refresh Rate	70,000 wfms/s
Horizontal Scale (s/div))	1ns/div - 1000s/div, step by 1 - 2 - 5
Channel	4
Display	8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy	±2.5 ppm
Input Coupling	DC, AC, GND
Vertical Sensitivity	1mV/div - 10V/div (at input)
Trigger Type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
	and CAN (optional)
Bus Decoding(optional)	I2C, SPI, RS232, CAN
Trigger Mode	Auto, Normal, and Single
Vertical Range	±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div)
Waveform Math	+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
Communication Interface	USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN
Frequency Counter	available
Power Supply	100V - 240V AC, 50/60Hz, CAT II
Fuse	2A, T class, 250V
Battery (optional)	3.7V, 13200mA
Dimension (W x H x D)	340mmx177mmx90mm

Warranty: 1 Year

Uses

Lab use professional oscilloscope

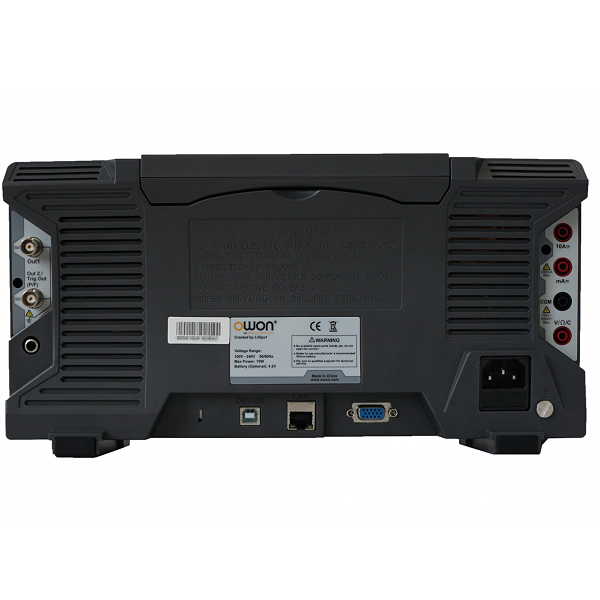

OWON XDS 3204E Digital Oscilloscope- 4 Channel, 200 Mhz

New Launch!

Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery (Optional) to implement floating test.

The Owon XDS3204E oscilloscope is an oscilloscope with a magnificent price-quality ratio. The 3204E features a large display, good sampling rate and a large memory depth.

Because the scope features good specifications, such as the low Noisefloor, this device is suitable for many applications. With the free decoding options, many prototcols can easily be decoded. Furthermore, color grading is possible for clearer analysing of signals.

200MHz Bandwidth，1GS/s sample rate, 4 Channels
8-bit high resolution ADC
70,000 wfms/s waveform refresh rate
low back ground noise
8 inch 800 x 600 high resolution LCD, more user-friendly operation experience
SCPI, and LabVIEW supported
multi- trigger, and bus decoding function
multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX,

Rs. 90,000.00 Save Rs. 18000 (20% Off)

Rs. 72,000.00 /each (Incl GST-18%)

Technical Documents

Quantity

20 in Stock
