Technical Specifications

Type of Product: Soldering Station BGA Hot Air Gun
Power: 1000W
Temp Range: 100-500 degC
Air volume block range: 1-120L/Min
Maximum air volume: 250L/Min
Dimension / Weight: 260*190*130+-5mm/about 5.1kg
Blower type: Brushless vortex blower
Temp correction: Digital correction
Temp control method: Microcomputer control temp

Warranty: 1 Year

Uses

Applicable Industries: Machinery Repair Shops, Retail, Accurate temperature control, Brushless vortex blower, Digital correction, Microcomputer control temp.

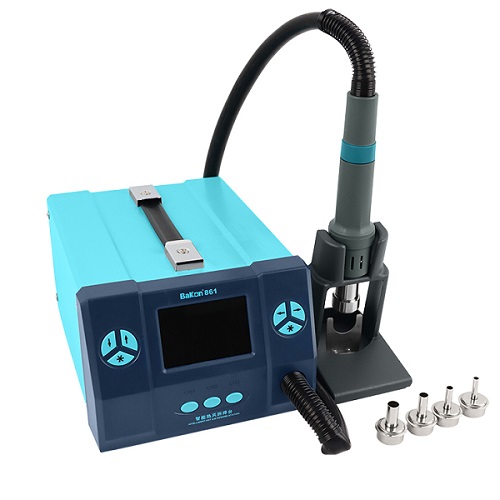

Bakon BK861 Hot Air ReWork Station



  • Three regular channels are "CH1", "CH2" and "CH3". Each channel's parameters including temperature and airflow can be set.
  • Password protection and key-lock functions.
  • Real time operation by the magnetic switch. It will enter sleeping state when the handle is placed on holder.
  • Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurate and stable, not affected by airflow.
  • A multipurpose unit, having brushless whirlpool motor, wide range and stepless adjustable airflow.
  • An automatic cooling system can prolong the life time of heating element and protect the handle
  • It can be networked with automation equipment to realize information management.
  • Includes 4 Nozzles: 5/7/8/10
  • Power: 1000W
  • Temp Range: 100-500 degC
  • Air volume block range: 1-120L/Min

Rs. 28,500.00   Save Rs. 11000 (39% Off)

Rs. 17,500.00 /each (Incl GST-18%)

PDF Icon Technical Documents PDF Icon

Stock Icon 49 in Stock

Technical Specifications

Type of Product: Soldering Station BGA Hot Air Gun
Power: 1000W
Temp Range: 100-500 degC
Air volume block range: 1-120L/Min
Maximum air volume: 250L/Min
Dimension / Weight: 260*190*130+-5mm/about 5.1kg
Blower type: Brushless vortex blower
Temp correction: Digital correction
Temp control method: Microcomputer control temp

Warranty: 1 Year

Uses

Applicable Industries: Machinery Repair Shops, Retail, Accurate temperature control, Brushless vortex blower, Digital correction, Microcomputer control temp.
